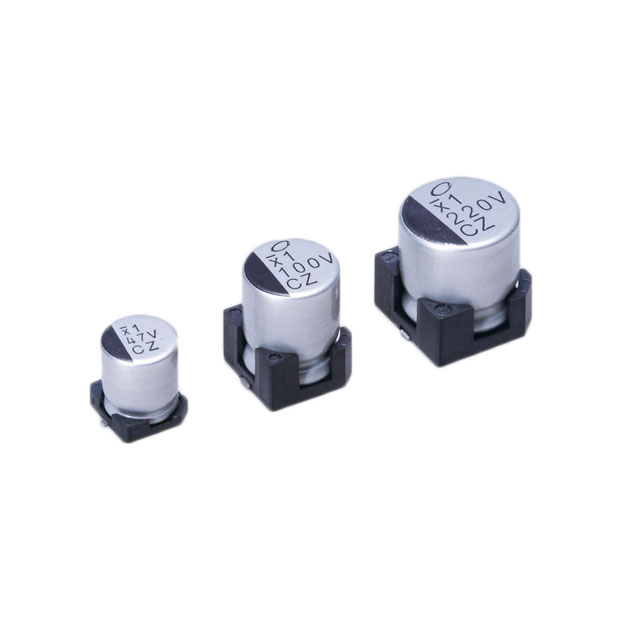

Technical Details

• Tolerance ±20%
• Package / Case Radial, Can - SMD
• Size / Dimension 0.492" Dia (12.50mm)
• Polarization Polar
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 125°C
• Applications General Purpose
• Ratings AEC-Q200
• ESR (Equivalent Series Resistance) 200mOhm @ 100kHz
• Lifetime @ Temp. 3000 Hrs @ 125°C
• Surface Mount Land Size 0.535" L x 0.535" W (13.60mm x 13.60mm)
• Height - Seated (Max) 0.571" (14.50mm)
• Capacitance 220 µF
• Voltage - Rated 63 V
• Ripple Current @ Low Frequency 500 mA @ 120 Hz
• Ripple Current @ High Frequency 1 A @ 100 kHz
