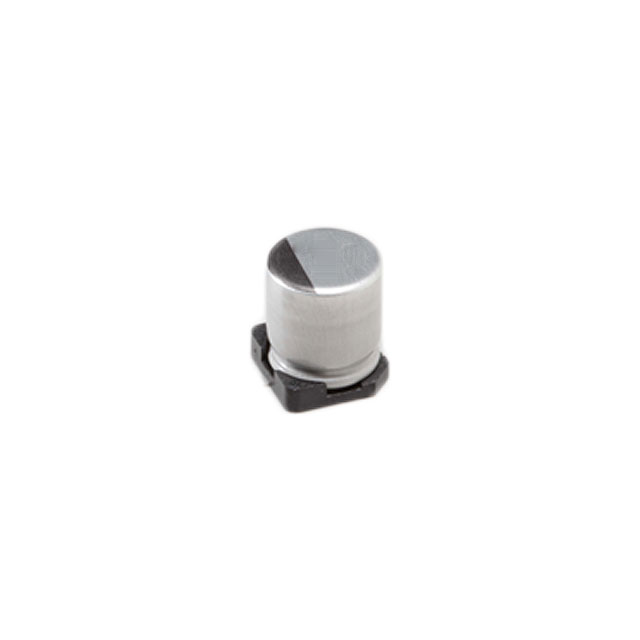

Technical Details

• Tolerance ±20%
• Package / Case Radial, Can - SMD
• Size / Dimension 0.248" Dia (6.30mm)
• Polarization Polar
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 125°C
• Applications Automotive
• Ratings AEC-Q200
• ESR (Equivalent Series Resistance) 300mOhm @ 100kHz
• Lifetime @ Temp. 2000 Hrs @ 125°C
• Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
• Height - Seated (Max) 0.343" (8.70mm)
• Capacitance 150 µF
• Voltage - Rated 25 V
• Ripple Current @ Low Frequency 98.5 mA @ 120 Hz
• Ripple Current @ High Frequency 197 mA @ 100 kHz
