Technical Details

• Tolerance ±20%

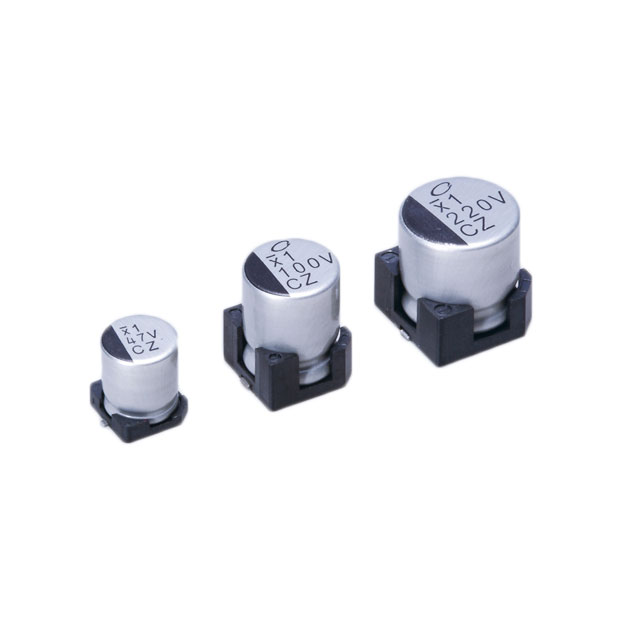

• Package / Case Radial, Can - SMD
• Size / Dimension 0.630" Dia (16.00mm)
• Polarization Polar
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 125°C
• Applications General Purpose
• Ratings AEC-Q200
• ESR (Equivalent Series Resistance) 120mOhm @ 100kHz
• Lifetime @ Temp. 4000 Hrs @ 125°C
• Surface Mount Land Size 0.673" L x 0.673" W (17.10mm x 17.10mm)
• Height - Seated (Max) 0.886" (22.50mm)
• Capacitance 390 µF
• Voltage - Rated 80 V
• Ripple Current @ Low Frequency 800 mA @ 120 Hz
• Ripple Current @ High Frequency 1.6 A @ 100 kHz
