Technical Details

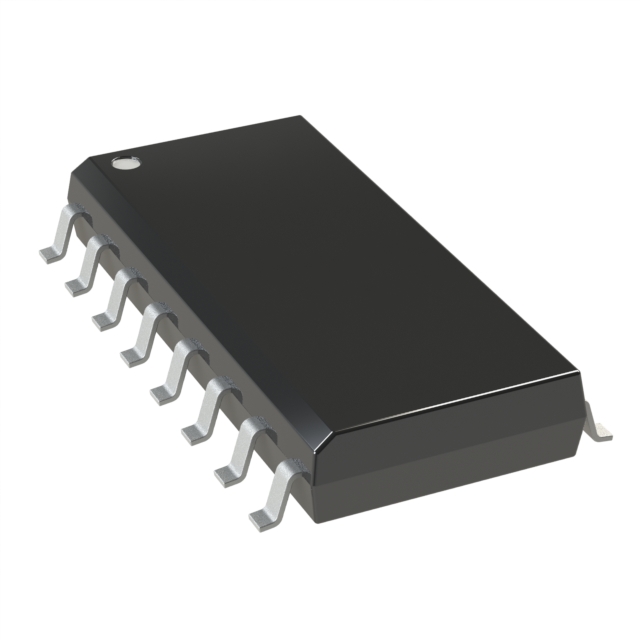

• Package / Case 16-TSSOP (0.173", 4.40mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C
• On-State Resistance (Max) 160Ohm
• -3db Bandwidth 250MHz
• Supplier Device Package 16-TSSOP
• Voltage - Supply, Single (V+) 10V ~ 20V
• Voltage - Supply, Dual (V±) ±15V
• Charge Injection 0.5pC
• Crosstalk -80dB @ 1MHz
• Multiplexer/Demultiplexer Circuit 4:1
• Channel-to-Channel Matching (ΔRon) 30Ohm
• Switch Time (Ton, Toff) (Max) 400ns, 400ns
• Channel Capacitance (CS(off), CD(off)) 15pF, 10pF
• Current - Leakage (IS(off)) (Max) 30µA
• Number of Circuits 2
